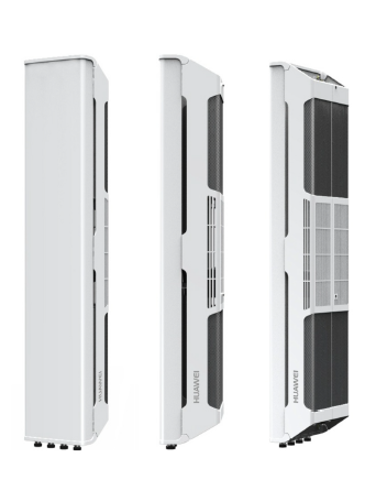

• AAU3910 2A+1P, Active: 1.8G, 2.1G, 2.6G, AWS Passive: 1.8G, PCS, 2.1G, 2.6G, 1450*320*230, General Available


  Model: AAU3910

  Active & Passive Configuration: 2A+1P

  Frequency: Active: 1.8G, 2.1G, 2.6G, AWS Passive: 1.8G, PCS, 2.1G, 2.6G

  TX/RX: 2T4R/4T4R

  EIRP: 2*65.3dBm / 4x63.5dBm

  Technology: GSM, UMTS, LTE

  Dimension(mm): 1450*320*230

  Weight: 39.5kg(1A), 53.5kg(2A)

  Heat Dissipation: Natural Cooling

  Passive Connector: 4*7/16 DIN Female

  Status Of Product: General Available

   Datasheet

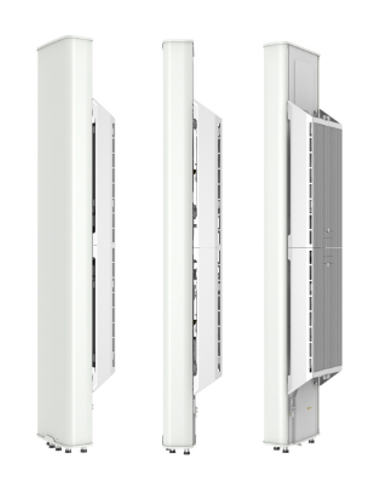

• AAU3911 2A+2P, Active: 1.8G, 2.1G, AWS, 2.6G Passive: 1.8G, PCS, 2.1G, 2.6G, 700M, 800M, 850M, 900M, 2020*359*290, General Available


  Model: AAU3911

  Active & Passive Configuration: 2A+2P

  Frequency: Active: 1.8G, 2.1G, AWS, 2.6G Passive: 1.8G, PCS, 2.1G, 2.6G, 700M, 800M, 850M, 900M

  TX/RX: 2T4R/4T4R

  EIRP: 2*64.8dBm / 4*63dBm

  Technology: GSM, UMTS, LTE

  Dimension(mm): 2020*359*290

  Weight: 49kg/54kg(1A), 64kg(2A)

  Heat Dissipation: Natural Cooling

  Passive Connector: 6*4.3-10 Female

  Status Of Product: General Available

   Datasheet

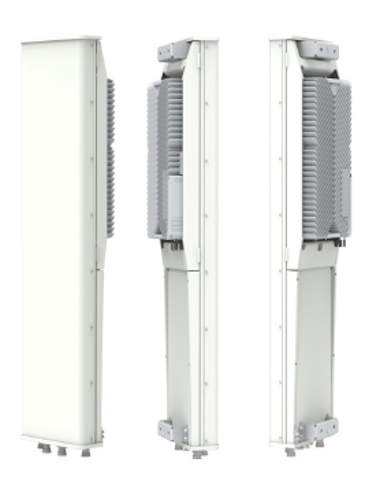

• AAU3920 2A+1P, Active: 1.8G, 2.1G Passive: 2.3~2.6G, 1450*320*188, General Available


  Model: AAU3920

  Active & Passive Configuration: 2A+1P

  Frequency: Active: 1.8G, 2.1G Passive: 2.3~2.6G

  TX/RX: 2T4R

  EIRP: 2*66.5dBm

  Technology: GSM, UMTS, LTE

  Dimension(mm): 1450*320*188

  Weight: 35kg

  Heat Dissipation: Natural Cooling

  Passive Connector: 4*4.3-10 Female

  Status Of Product: General Available

   Datasheet

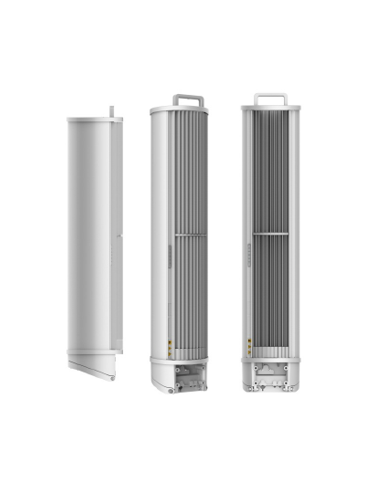

• AAU3940 2A, Active: 1.8G, 2.1G or Active: PCS, AWS, 750*150*150, General Available


  Model: AAU3940

  Active & Passive Configuration: 2A

  Frequency: Active: 1.8G, 2.1G or Active: PCS, AWS

  TX/RX: 2T2R

  EIRP: 2*58.8dBm

  Technology: UMTS, LTE

  Dimension(mm): 750*150*150

  Weight: 15kg

  Heat Dissipation: Natural Cooling

  Passive Connector: NULL

  Status Of Product: General Available

   Datasheet

• AAU3961 2A+2P, Active: 1.8G, 2.6G Passive: 1.8G, 2.1G, 2.6G, 700M, 800M, 850M, 900M, 1550*370*230, General Available


  Model: AAU3961

  Active & Passive Configuration: 2A+2P

  Frequency: Active: 1.8G, 2.6G Passive: 1.8G, 2.1G, 2.6G, 700M, 800M, 850M, 900M

  TX/RX: 4T4R

  EIRP: 4*63dBm

  Technology: GSM, LTE

  Dimension(mm): 1550*370*230

  Weight: 45kg(1A), 63kg(2A)

  Heat Dissipation: Natural Cooling

  Passive Connector: 4*4.3-10 Female

  Status Of Product: General Available

   Datasheet

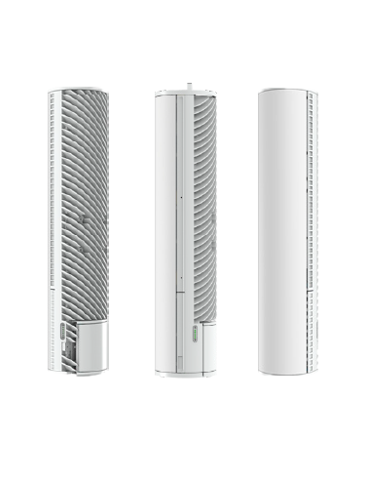

• AAU5940 2A, Active: 1.8G, 2.1G, 750*165*165, General Available


  Model: AAU5940

  Active & Passive Configuration: 2A

  Frequency: Active: 1.8G, 2.1G

  TX/RX: 2T2R

  EIRP: 2*60dBm or 2*60.5dBm

  Technology: GSM, UMTS, LTE

  Dimension(mm): 750*165*165

  Weight: 17kg

  Heat Dissipation: Natural Cooling

  Passive Connector: NULL

  Status Of Product: General Available
